Belt Magazine

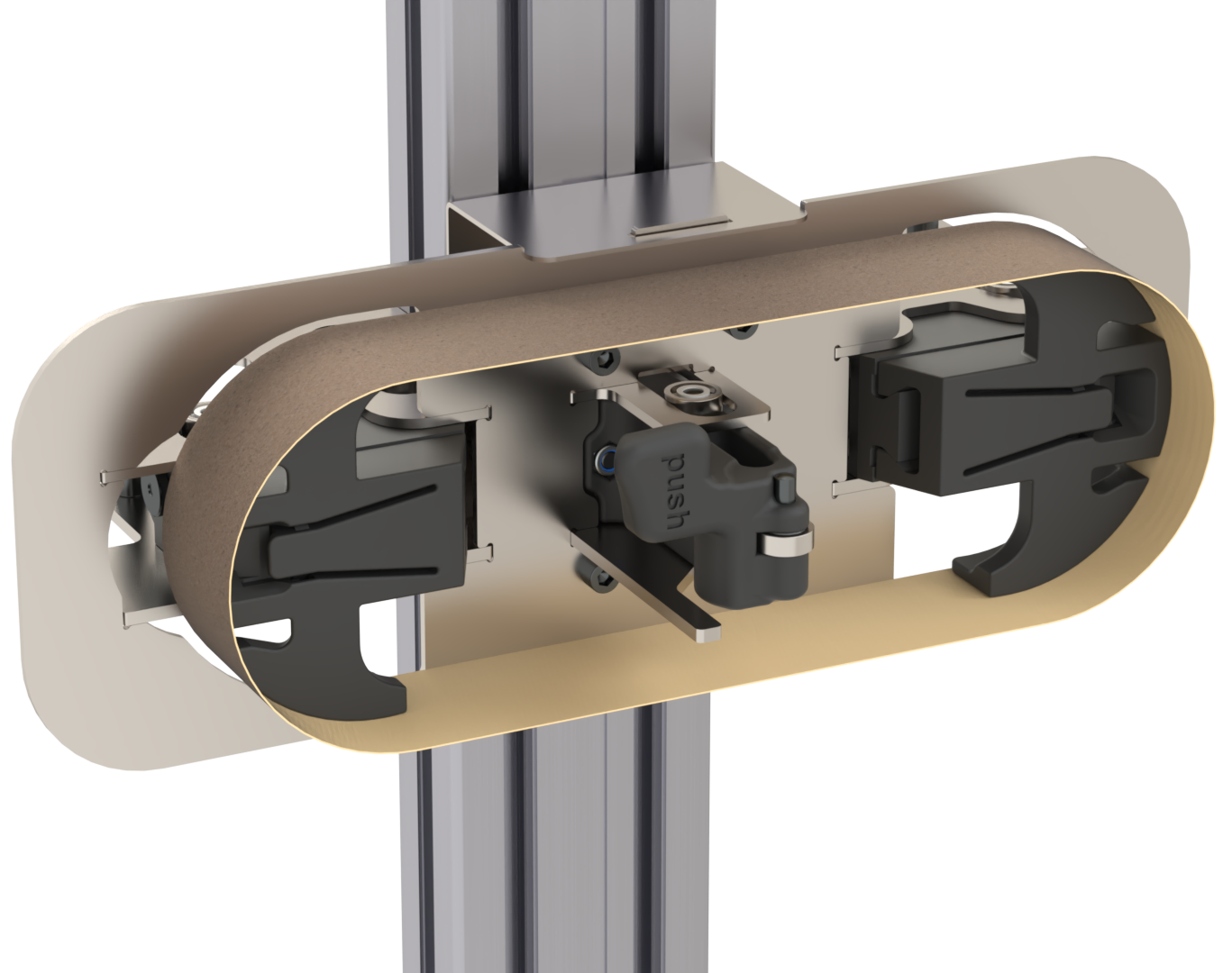

The Belt Magazine is an accessory for robotic grinding systems designed to pre-load abrasive belts, enabling automatic transfer to grinding heads with an integrated belt changer.
It is compatible with belts of 762 mm length and 50 mm width, and supports belt grinder heads with contact wheels of 50 mm or 100 mm in diameter.
Key Features
Efficient Belt Storage: Ensures uninterrupted workflow through automatic belt change access – ideal for highly automated grinding setups.
High Compatibility: Fully compatible with SUHNER BGm belt grinder heads featuring automatic belt replacement.
Flexible Mounting: Installs horizontally or vertically on 90×45 mm aluminum profiles.
Sensor-Ready: Designed for integration with presence detection and pick-up confirmation sensors.
Manual Refill Possible: Even in automated cells, manual belt reloading remains easy and accessible.
Technical data
| Type | Belt magazine |
| Product name | Belt magazine 100-50/100/40 |
| Article number | 101005989 |
| Belt size | 762 x 50mm |
| Contact wheel size | 50mm or 100mm diameter |
| Tensioning wheel | 100 mm |
| Specific features | Compatible with 90×45 mm profiles |
