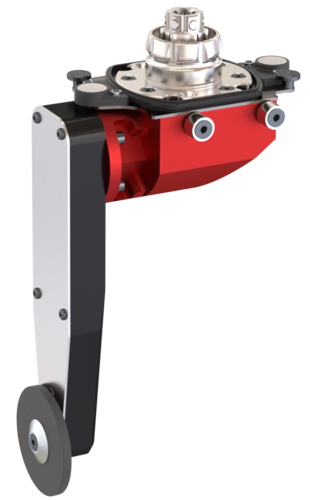

Fillet Grinder Head
The Filet Grinder Head was specifically developed for automated grinding of internal corner welds in hard-to-reach areas such as sinks, enclosures, or tanks. Its slim and compact design makes it ideal for precise, light-duty applications in tight spaces. In most cases, the head is customized to the specific application.
Key Features:
Extremely compact design: Optimized for light-duty use with grinding discs or brushes from Ø 70 mm.
Versatile applications: Suitable for grinding, cleaning, and deburring corners and radii on metal, wood, or plastic.
Quick tool changes: Integrated SUHNER tool changer enables fast and secure head replacement.
RFID monitoring: Records and transmits usage data to the EFCm system for optimized performance and planned maintenance.
Applications:
Corner and radius processing: Outstanding accessibility for internal weld grinding.
Reliable solution: Small discs offer greater process reliability than traditional belts used in manual grinding.
Customizable: The FGm is usually configured as a custom solution tailored to the specific use case.
Technical data
| Type | Fillet Grinder Head |
| Product name | FGm-1:1.6 |
| Part number | 101004064 |
| Locking system | SUHNER tool changer |
| Double position locking | Yes |
| Max. rotation speed | 11400rpm |
| Max. force | 25N |
| Weight [kg] | 2.8 Kg |
| Spindle attachment | Ø6mm plain shaft |
| Gear ratio (n_in/n_out)(n_in/n_out) | 0.63 |
| Dust extraction | No |
| RFID | Yes |
| Specific features | For light-duty applications only |
