Belt Grinder Head
The Belt grinder head, combined with the EFCm, is the ideal end effector for maximizing productivity. It handles nearly any grinding application – from rough material removal to fine surface finishing. The automatic belt changing system ensures continuous, uninterrupted operation.
Key Features:
Optimized belt size for accessibility and durability: Compatible with grinding belts up to 762 mm in length and 50 mm in width. Standard contact wheel Ø 100 mm; optional Ø 150 mm.
Versatile applications: Seamlessly handles grinding, graining, deburring, or finishing tasks on metal, wood, and plastic surfaces.
Quick application changes: Integrated SUHNER tool changer enables fast and reliable head replacement.
RFID monitoring: Records and transmits usage data to the EFCm system for optimal performance and scheduled maintenance.
Typical Applications:
Weld removal: Especially suited for automated weld seam removal.
Tight areas or large surfaces: The standard Ø 100 mm wheel is ideal for flat areas, while the 50 mm version is perfect for tight radii. The Ø 150 mm version ensures efficiency on large surfaces.
Technical data

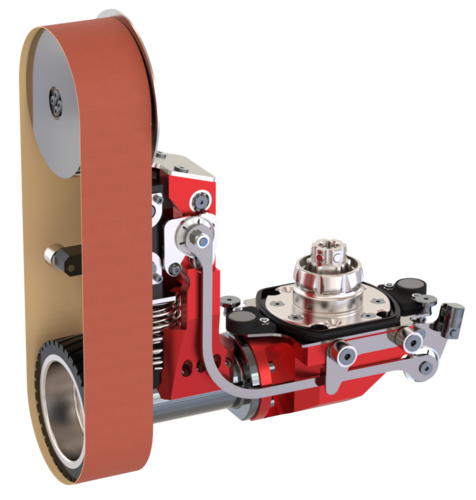

Belt Grinder Head, contact wheel Ø100 mm
| Type | Belt grinder head, automatic changer, contact wheel Ø 100 mm |
| Product name | BGm-1.1-BC-100/100/40 |
| Part number | 101005858 |
| Locking system | SUHNER tool changer |
| Double position locking | No |
| Max. output speed [tr/min] | 7 000 rpm |
| Max. force | 150 N |
| Weight [kg] | 5.2 kg |
| Gear ratio (n_in / n_out) | 1.00 |
| Dust extraction | No |
| RFID | Yes |
| Contact roll DxW | 100x40 mm |
| Belt size | 50x762 mm |
| Belt replacement | Automatic |
| Specific features | Belt status monitoring |
Belt Grinder Head, contact wheel Ø50 mm
| Type | Belt grinder head, automatic changer, contact wheel Ø 50 mm |
| Produktname | BGm-1.1.7-OF-BC-50/100/40 |
| Part number | 101005859 |
| Locking system | SUHNER tool changer |
| Double position locking | No |
| Max. output speed [tr/min] | 12100 rpm |
| Max. force | 150 N |
| Weight [kg] | 5.8 kg |
| Gear ratio (n_in / n_out) | 0.59 |
| Dust extraction | No |
| RFID | Yes |
| Contact roll DxW | 50x40 mm |
| Belt size | 50x762 mm |
| Belt replacement | Automatic |
| Specific features | Belt status monitoring / Offset version |
